2

Chapter 1: Reader Kit Installation

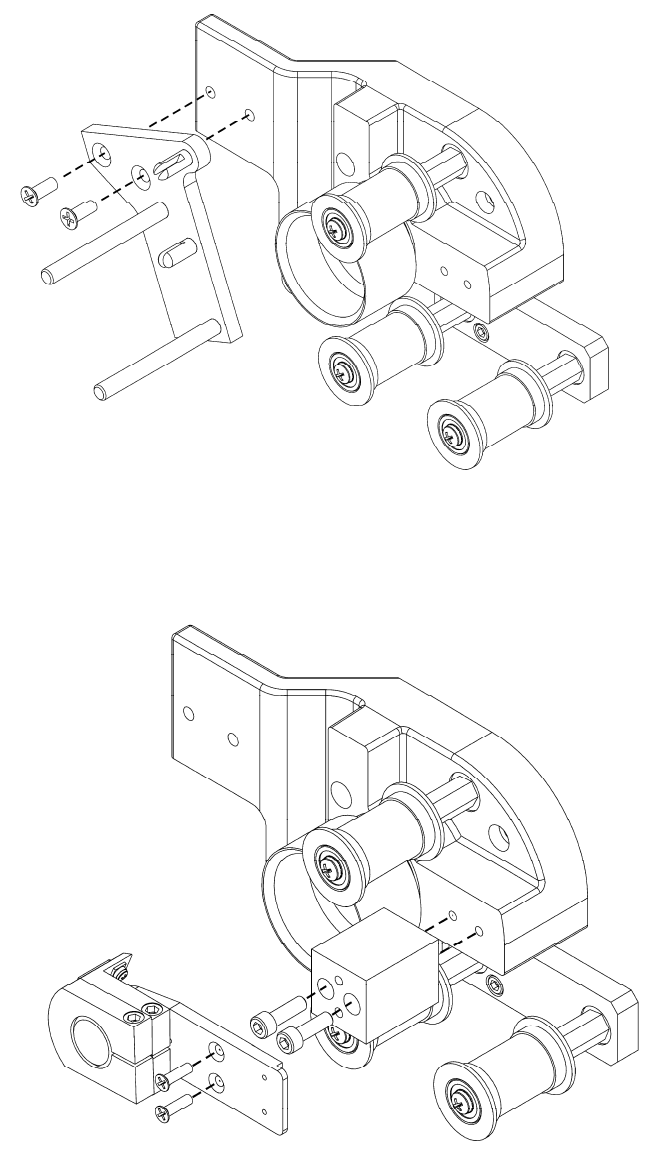

The reader mounting plate

attaches to the casting with 10-

32x1/2" flathead Philips screws

as shown.

The LED standoff attaches to the

casting with 8-32x5/8" socket

head cap screws into

counterbored holes. These

screws will be hidden after the

next step. You may want to

thread lock them in place.

Next, the LED mounting plate

attaches to the standoff with 6-

32x1/2" Blk flathead Philips

screws.
